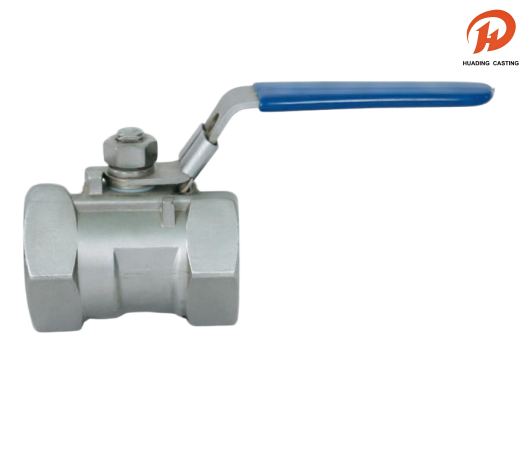

One-Pice interior filum Connection Ball Valvulae

One-Pice Inner Thread Connection Ball Valves elementa essentialia sunt in modernis systematibus industrialis fluidi temperantiae, pretio pacti consilio et certae operationis obsignatione. Hae One-Pice Interior Thread Connection Ball Valvulae compaginationem corporis unitalem inducunt, quae significanter potentiae vias Leak reducit, eas maxime aptas ad altae pressionis et salutis ambitus efficiens. Connexio stamina interna permittit ad institutionem vivam, securam in norma limbis sine adaptoribus extra, salvis tempus et impensa durante sustentatione. Constructa ex materia durabili sicut chalybe vel aere incorrupta, One-Pice Connexio Ball Valvulae internae sequelae corrosionem resistentiam praebent et vitam servitutem extensam praebent. Eorum ictu-e probationis caulis et deminuti consilium pepererunt, ulteriorem salutem perficiendis augere et subtilitatem fluere. Late applicatae in curatione chemica, aqua, et in industrias olei & gasi, hae valvulae sub conditionibus exigendis constanter praestant. Praesto sunt in pressione ratings sicut PN16 et PN63, signis internationalibus inclusis NPT, BSPT, DIN2999, et ISO228 obsequuntur, ut global compatibilitas et fides.

Mitte Inquisitionem

depictio producti

Name: One-Pice interior Thread Connection Ball Valvulae

Materia: Post Tabula

MOQ: 100 pcs

Sarcina: Interior fascia incrassata bullae sacculi et exterioris sarcinae globulorum, vel mari- bilium grabatum vecturae

Shipment: DHL, UPS, FedEx, LCL per mare etc.

Tolerantia: Subtilitas CNC machinatio, tolerantia ±0.01mm

Inspectio: Germanica CMM inspectio plena, defectus nulla

OEM & ODM: OEM & ODM acceptum, festinanter specimen faciendum

Tempus: Strictioris qualitas imperium, in tempore partus

Servitium: Lata materia lectio pro consuetudine partium

One-Pice interior filum Connection Ball Valvulae

One-Pice Inner Thread Ball Valvulae libera compacta, Leak-stricta perficiendi pro systemata fluidi industrialis. Confidebant in processu chemico, curatione aquae, et oleo & gas, hae valvulae condiciones lentas certo tractant. Oblatum in PN16/PN63 aestimationes cum filis NPT/BSPT, signis globalis ob inconsutilem integrationem in retiacula internationalia, constantem ac durabilem per applicationes postulando praebens, obsequuntur.

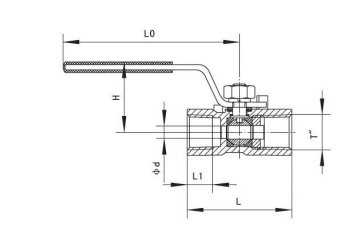

Ball Valvae Technical Characteres et Typical Drawing

APPELLATIO DIA. (mm)	PIPETHREAD	DIMENSIONE (mm)
		d	L	L1	H	L0
8	1/4	4.6	39	9.5	31	62
10	3/8	6.8	44	10.5	35.5	62.5
15	1/2	9.2	56.5	14	40	96
20	3/4	12.5	59	15	44	96
25	1	16	71	18	50	101
32	1 1/4	20	78	19	54	101
40	1 1/2	25	83	20	70	135
50	2	32	100	23	75	135

Ball Valvae Material List

PARS NAME	MATERIA
CORPUS	WCB CF8 CF8M
CAP	WCB CF8 CF8M
HANDLE	SS304
SPHAERA	SS304 SS304 SS316
SEDES	PTFE
STEM	SS304 SS304 SS316
FASCICULUS WASHER	PTFE
GASKET	PTFE
WASHER EJECTE	PTFE
NUT	SS304
VER WASHER	SS304
JOCULAMENTUM	SS304
HANDLE	SS304
VELARIUM	Plastic
